Device idntification

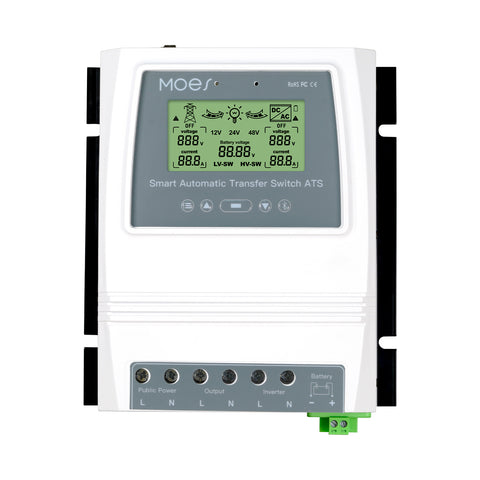

- Device name: Smart Automatic Transfer Switch ATS
- Device model: BAT-80A
Short description
The Dual Power Transfer Controller is used between an Off-Grid Power System and the Public Utilty Power Supply. The ATS Controller connects separately to 1) UtilityPower 2) Inverter 3) Battery 4) Load. The User lnterface allows for both Monitoring ofthe ATS Operating State and Adjusting Voltage Setpoints. The Master ON/OFF Switchis located at the top of the controller for easy access.
Specifications
Model：BAT-80A
Rated Power：8kw (Utility Power 100-120V) 16kw (Utility Power 220-240V)
Input Voltage：Auto Selection: AC 100-120V or AC 220-240V
Output Voltage：Auto Selection: AC 100-120V or AC 220-240V
Transfer time：Inverter transfer time to utility power ≤10ms Utility power transfer time to inverter ≤16ms
LCD Display：Battery voltage; Power source: Utility power or battery-inverter.
System Voltage：Auto Select: 12V or 24V or 48V
Battery low voltagetransfer setpoints：Default: 10.5v/21v/42v, adjustable
Battery recoverySetpoints：Default: 12.5v/25v/50v, adjustable
Application：Off grid solar system;Wind generator; Hydro generator
Product Size：19*17*7.25cm(7.4”*6.7”*2.8”in)
N.W/PC：1.32KG(2.9lbs)
Frequency Range：2400-2483.5MHz
RF Output Power：20dBm
